en:Carworlds:Leon:Specs:Style MT/EN

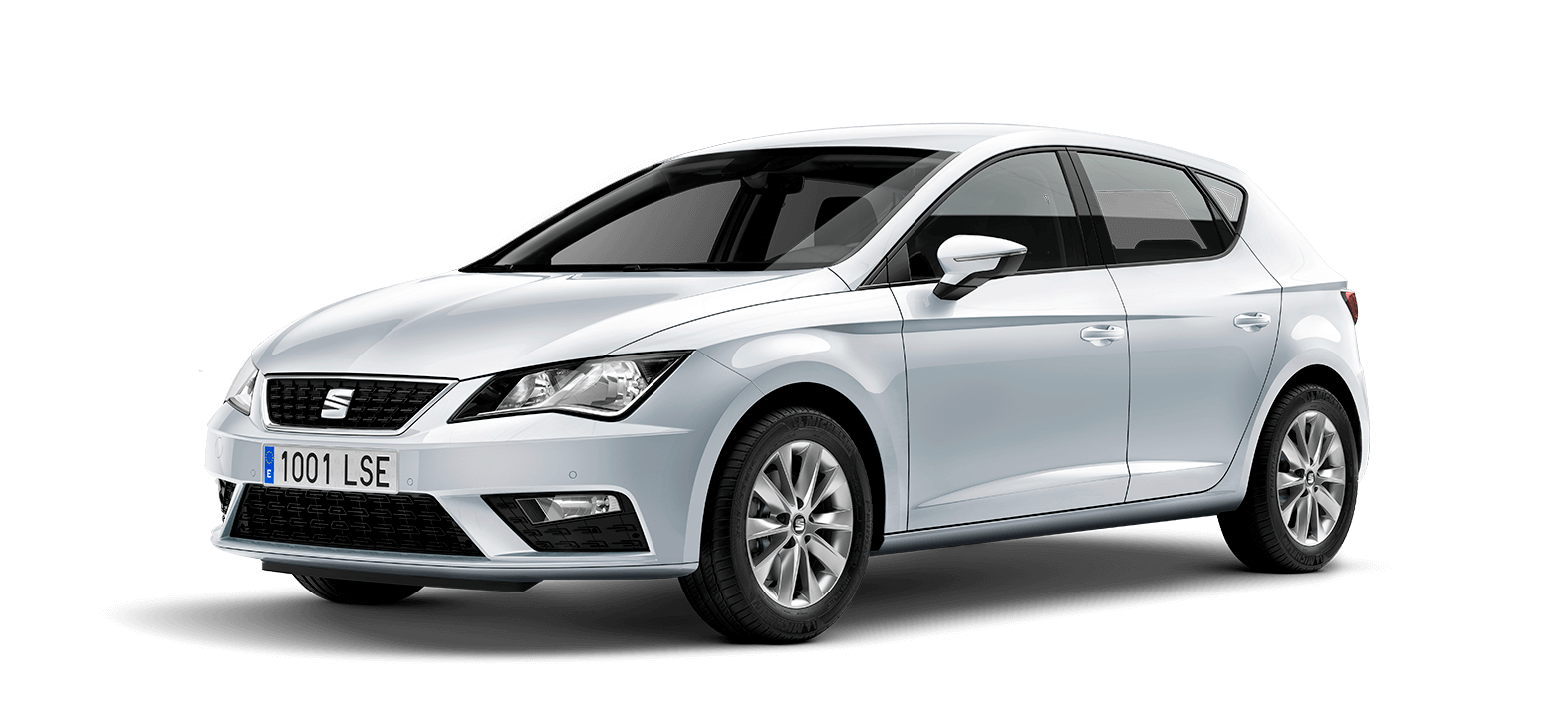

Style

Choose the Version
Choose the Engine
Safety
  • 6 Airbags (2 front, 2 front side and 2 curtain)
  • iSOFIX & Top Tether child seat anchors
  • Automatic Post-Collision Braking System
  • ESC and Tyre pressure warning indicator
  • Electronic Cruise Control System
  • Urban 15" steel wheels and tyre fit
  • Exterior mirrors and door handles in body colour
  • Comfort suspension
  • Chromed radiator grille frame
  • Halogen headlamps with LED Daytime Running Lights (DRL)
  • Manual coming and leaving home function
  • SEAT Media System Colour:
    - 5in Colour touch screen, Sound features: MP3/WMA, USB/SD card/Bluetooth (phone and audio streaming)/Aux-in connectivity, 6 speakers
  • Power locking, remote control with 2 foldable keys and opening selective boot (3 buttons)
  • Basic 3,5" instrument cluster with on board computer
  • Front comfort seats
  • Driver seat height adjustment
  • Servotronic
  • Air conditioning
  • Manual Parking Brake
Safety
  • XDS and Auto Hold
  • Front Assist with city emergency braking function
  • Electronic Cruise Control System with indicators in cluster
  • Comfort Pack:
    - Cruise Control System (CCS) electronic and rear parking distance control
  • Safety Pack:
    - Seat belt reminder (front and rear seats) and Tiredness Recognition System
  • Urban 16" steel wheel and tyre fit
  • Design 16" 30/1 alloy wheels and tyre fit
  • Electric sunroof
  • Dark tinted rear windows
  • Black Exterior Pack:
    - Black roof wrapped with foil and Black mirrors
  • Panoramic sunroof
  • SEAT Full LED:
    - LED headlamps with LED Daytime Running Lights (DRL) and SEAT LED Highway Assist, LED front fog lamps without cornering lights and Full LED rear lamps (number plate LED light)
  • Halogen fog lamps with cornering function
  • Digital Audio Broadcasting (DAB)
  • Rear parking distance control
  • Winter Pack:
    - Heated front seats, head lamp washer, heated wash water and heated mirrors
  • Digital Cockpit
  • SEAT Full Link
  • Driver and passenger seat height adjustment
  • Double floor in boot
  • Climatronic 2 zones with Air Care
  • Storage Pack:
    - Box under driver seat, High central console, front armrest, air outlet rear and left side net in boot.
Engine

Fuel supply system: Direct injection: Common Rail

Ignition: Compressed ignition

Atmospheric/Supercharged: Turbo Charged

Fuel type: DIESEL

Oil capacity in initial fill (I): 5.0

Alternator (A): 110-140

Battery (Ah/A): 70 / 420

Acceleration 0-80 km/h (s): 6.8

Acceleration 80-120 km/h (s) at V: 13.0

Acceleration 1000 m (s): 31.1

Type: 5D

Wheelbase (mm): 2,636

In running order with driver (kg): 1,311

In running order with driver (kg) Front / Rear: 815 / 496

Maximum weight allowed (kg): 1,870

Maximum weight without brake (kg): 650

Maximum weight w/brake 8% (kg): 1,800

Maximum weight w/brake 12% (kg): 1,500

Gearbox type: MQ250-5F

Ratios I: 3.778

II: 1.944

III: 1.185

IV: 0.816

V: 0.625

VI: -

VII: -

R: 3.600

Group 1 ratio: 3.647

Group 2 ratio: -

Group 3 ratio: -

Speed 1000 rpm in IV/V (km/h): 39.1 / 51.0 / -- / --

Rims: 6.5Jx16"
            7Jx17"

Tyres: 205/55 R16 91V
           225/45 R17 91W

Front suspension: Independent type McPherson - coil springs - hydraulic shock absorber

Rear suspension: Semirigid axle, coil springs and hydraulic shock absorber

Steering System: Rack Electric Power System (R-EPS)

Turning diameter (m): 10,3

Brake system: Dual hydraulic circuit and brake system diagonal split with brake booster

Type front and rear brakes: Front ventilated disc brakes and rear solid disc brakes

Front brakes (mm): 288x25

Rear brakes (mm): 253x10 (Versions w. EPB 272x10)

1.6 TDI 85 kW MQ-5 Start/Stop (115 HP)

Max. Power (3,250 - 4,000 rpm)
85 kW
Max. Torque (1,500 - 3,250 rpm)
250 Nm
Max. Speed
197 km/h
Acceleration (0-100 km/h)
9.8 s
Cylinders
4
Displacement
1,598 cc
Compression Ratio
16.2:1
Bore & Stroke
79.5 / 80.5 mm
CO2 Emissions Info Icon
109 - 111 g/km
Fuel supply system

Direct injection: Common Rail

Ignition

Compressed ignition

Atmospheric/Supercharged

Turbo Charged

Fuel type

DIESEL

Oil capacity in initial fill (I)

5.0

Alternator (A)

110-140

Battery (Ah/A)

70 / 420

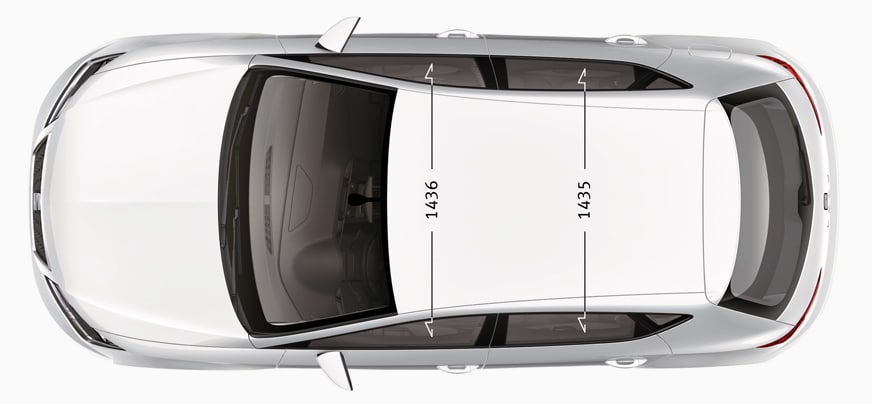

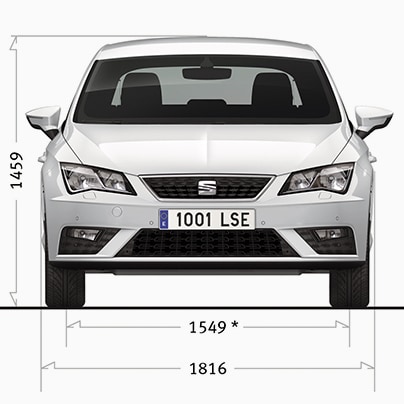

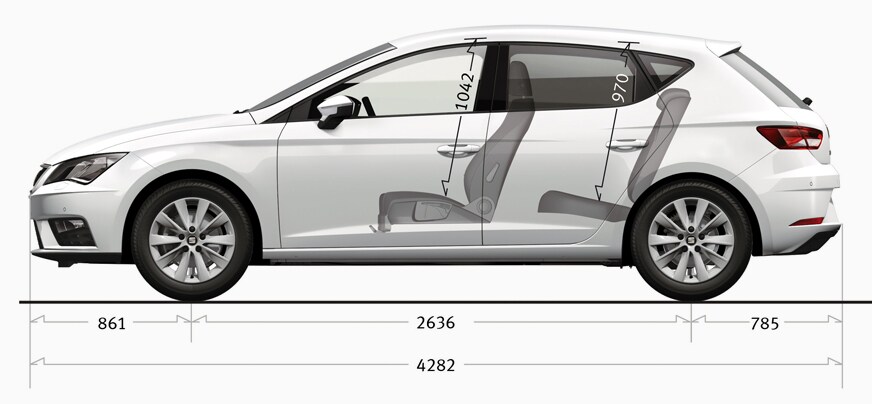

Dimensions
Lenght
4,282mm
Width
1,816mm
Height
1,459mm
Track Front/Rear
1,549/ 1,520 - 1,544/ 1,514 - 1,538/ 1,508 - 1,534/ 1,504
Boot Capacity
380l (TGI 275l)
Fuel Tank Capacity
50l

Our global range of cars and product specifications varies from country to country. Please, visit your local SEAT website to know more about the product offer available for you.

“The specified fuel consumption and emission data have been determined according to the measurement procedures prescribed by law. Since 1st September 2017, certain new vehicles are already being type-approved according to the Worldwide Harmonized Light Vehicles Test Procedure (WLTP), a more realistic test procedure for measuring fuel consumption and CO2 emissions. Starting on September 1st 2018, the New European Driving Cycle (NEDC) will be replaced by the WLTP in stages. Owing to the more realistic test conditions, the fuel consumption and CO2 emissions measured according to the WLTP will, in many cases, be higher than those measured according to the NEDC. For further information on the differences between the WLTP and NEDC, please visit our web page http://www.seat.com/company/wltp-standard.html

We are currently still required by law to state the NEDC figures. In the case of new vehicles which have been type-approved according to the WLTP, the NEDC figures are derived from the WLTP data. It is possible to specify the WLTP figures voluntarily in addition until such time as this is required by law. They are intended exclusively as a means of comparison between different vehicle types. Additional equipment and accessories (e.g. add-on parts, different tyre formats, etc.) may change the relevant vehicle parameters, such as weight, rolling resistance and aerodynamics, and, in conjunction with weather and traffic conditions and individual driving style, may affect fuel consumption, electrical power consumption, CO2 emissions and the performance figures for the vehicle.

For more information about official fuel consumption and CO2 emissions values in new passenger cars, check the “Guide to passenger cars for sale in Spain, showing CO2 consumption and emissions”, available at all dealerships and on the webpage of the Institute for Diversification and Saving of Energy (http://coches.idae.es/PDF/GuiaFinalN.pdf.)“
