Fuel supply system: TSI Direct Injection
Ignition: Electronic map-controlled ignition
Atmospheric/Supercharged: Turbo Charged
Fuel type: ROZ 95
Oil capacity in initial fill (I): 4.8
Alternator (A): 110-140-180
Battery (Ah/A): 59 / 320 - 69 / 360 - 68 / 380 - 70 / 420
Acceleration 0-80 km/h (s): 6.5
Acceleration 80-120 km/h (s) at V: 11.9
Acceleration 1000 m (s): 31.3
Type: A-SUV
Wheelbase (mm): 2,790
In running order with driver (kg): 1,599 (*) / 1,634 (**)
In running order with driver (kg) Front / Rear: 888 / 711 (*). 883 / 751 (**)
Maximum weight allowed (kg): 2,220 (*) / 2,330 (**)
Maximum weight without brake (kg): 750
Maximum weight w/brake 8% (kg): 2,000
Maximum weight w/brake 12% (kg): 1,800
Gearbox type: MQ350-6F
Ratios I: 3,769
II: 2,087
III: 1,324
IV: 0,977
V: 0,975
VI: 0,814
VII: -
R: 4,549
Group 1 ratio: 4,563
Group 2 ratio: 3,476
Group 3 ratio: -
Speed 1000 rpm in IV/V (km/h): -
Rims:
7J x 17 ET40
7J x 18 ET43
Tyres:
215/65 R17 99V
235/55 R18 100V
Front suspension: Independent type McPherson - coil springs - hydraulic shock absorbe
Rear suspension: Multilink axle - coil springs - hydraulic shock absorber
Steering System: R-EPS (Rack Electric Power System)
Turning diameter (m): 11.9 m
Brake system: Dual hydraulic circuit and brake system diagonal split with brake booster
Type front and rear brakes: Front ventilated disc brakes and rear solid disc brake booster
Front brakes (mm): 314x30
Rear brakes (mm): 300x12
TSI Direct Injection
Electronic map-controlled ignition
Turbo Charged
ROZ 95
4.8
110-140-180
59 / 320 - 69 / 360 - 68 / 380 - 70 / 420
Seats: (*) 5 (**) 7
*With 235/45 R20 100V tyres

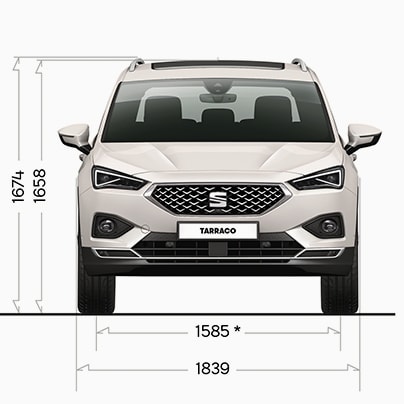

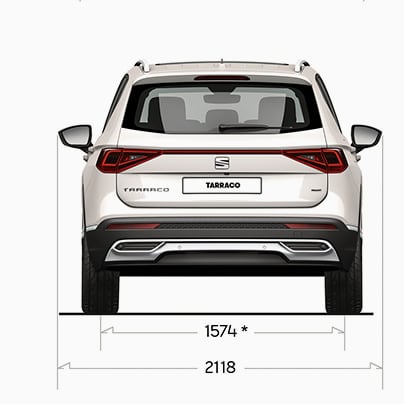

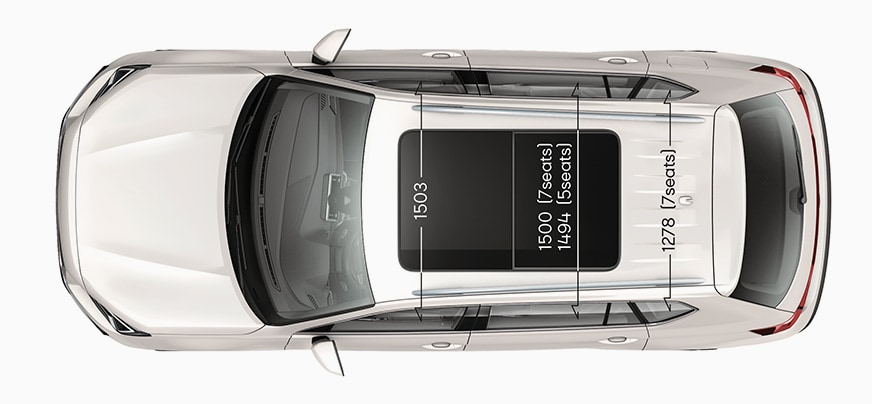

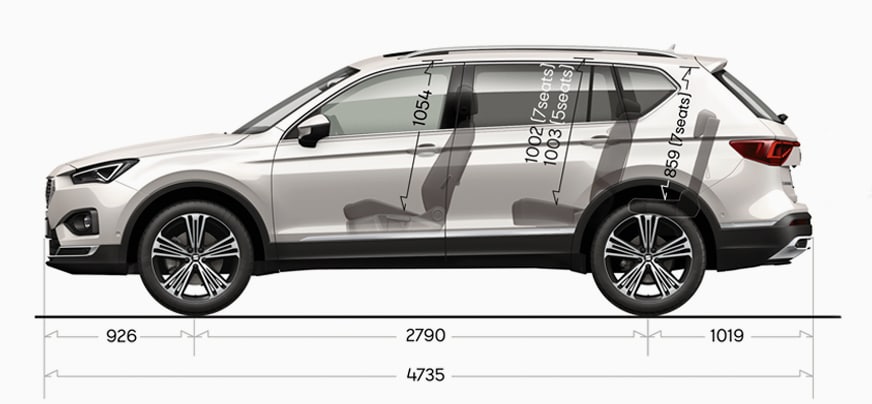

The above image represents the measurements of the Style and Xcellence trims. The height measurements of the FR trim may vary slightly.
Electric engine*
Max. Power: 86 kW (117 PS)
Max. Torque: 330 Nm
Combustion engine*
Max. Power: 110 kW (150 PS)
Max. Torque: 250 Nm
